03 SELECTION





A. Number of Blades











B. Type of Bore



Through                                                                 Threaded                                                           Boreless









C. Height of Blades



     High Blade                                                                                                            Low Blade









D. Inducer



 Standard                                                                Cutback                                                             Cutback









E. Direction of Rotation



Forward     Reverse









F. Exducer



    Standard                                                                                                         Tapered Tip









G. Size of Impellers





13mm Exducer                                                                                              425mm Exducer













H. Blade Surface















FLANK MILL

KTS specialise in Flank mill, where blade surfaces are milled in a single pass and this is economical, offers superior appearance and saves time. KTS adds in other performance feature that makes up for efficiency and power, eg taper tip, slim nose, slim hub, high pitch, high blade, etc.

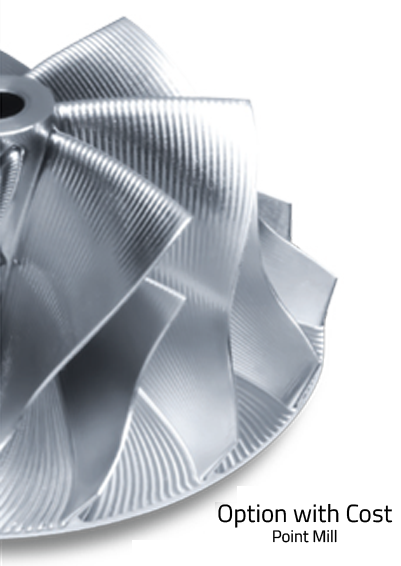

POINT MILL

Point milling brings the tool over the blade using multiple passes and this increases machining time and cost. Point Mill allows for more complicated geometry and OE are claiming a 2% increase in efficiency.

























Summary: Both Flank and Point mill are adopted by OEs KTS recommends flank mill. It is proven to bring great eXcitement, yet economical.
























I. Machine Engraving



       Standard                                                         KTS Logo | MOQ 30                                              Custom Logo | MOQ 30









J. Laser Marking



       Standard                                                         KTS Logo | MOQ 5                                              Custom Logo | MOQ 5







K. Inkjet Marking



      Standard                                             Neutral / Blank | MOQ 1                          Custom Ink Print | MOQ 5











L. Anodizing







...and more color choices available. Color anodizing are subjected to MOQ10.











M. Packaging









KTS BLUE BOX

- Attractive designs
- For markets where end-customers
- wants assurance of the KTS brand











NEUTRAL WHITE BOX

- Neutrality, no design
- Easy rebranding
- Keeps confidentiality of the source of supply


* To further your convenience and own branding, we offer many sizes of plain white box. Tier customers can request for box labels with your specified company info, logo and p/n.

















WHITE BOX INNER

- Precise Foam
- Bubble Wrap



























N. Customization




Ink Printing on Wheel
We ink print our p/n and batch data on the back disc.
Tier customers can request for your own p/n to be ink printed on back disc, subject to:
• Space constraint
• Above 20pcs per p/n per single order
• Not exchangeable




Laser Logo on Blade


Tier customers can request for your own logo to be laser on blade, subject to:
• Above 10pcs per p/n per single order
• Not exchangeable
• Clarity of engraving may become uneven if blade has intense curvature


• Fineprint or shading is not advised as this may adversely lower the integrity of blade material. No warranty on this blade surface if customer insist.




Color Anodizing on Wheel


Tier customers can request color anodizing on wheel. Please contact your sales person for more detail.





O. Other Turbomachinery Parts
